rfmatrix Class Reference

Matrix of real functions More...

#include <cfun.h>

Inheritance diagram for rfmatrix:

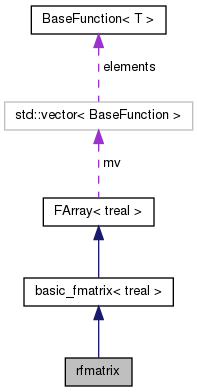

Collaboration diagram for rfmatrix:

Public Member Functions
	rfmatrix ()
	Default constructor.
	rfmatrix (size_t m, size_t n)
	Constructor.
	rfmatrix (size_t m, size_t n, const string_array &saInput)
	Constructor.
	rfmatrix (size_t m, size_t n, const string_array &saVars, const string_array &saBodies, const string_array &saParameters, const string_array &saMeanings)
	Constructor.
	rfmatrix (const BaseFMatrix &fm)
	Copy Constructor.
	rfmatrix (BaseFMatrix &&fm)
	Move Constructor.
rmatrix	operator() () const
	Numerical value.
rmatrix	operator() (treal d) const
	Numerical value.
rmatrix	operator() (treal d1, treal d2) const
	Numerical value.
rmatrix	operator() (treal d1, treal d2, treal d3) const
	Numerical value.
rmatrix	operator() (const treal *pd) const
	Numerical value.
Public Member Functions inherited from basic_fmatrix< treal >
	basic_fmatrix ()
	Default constructor.
	basic_fmatrix (size_t m, size_t n)
	Constructor.
	basic_fmatrix (size_t m, size_t n, const string_array &saInput)
	Constructor.
	basic_fmatrix (size_t m, size_t n, const string_array &saVars, const string_array &saBodies, const string_array &saParameters, const string_array &saMeanings)
	Constructor.
	basic_fmatrix (const basic_fmatrix &fm)
	Copy Constructor.
	basic_fmatrix (basic_fmatrix &&fm)
	Move Constructor.
size_t	msize () const
	Number of rows.
size_t	nsize () const
	Number of columns.
basic_fmatrix &	operator= (const basic_fmatrix &fm) throw (cvmexception)
	Assignment operator.
basic_fmatrix &	operator= (basic_fmatrix &&fm) throw (cvmexception)
	Assignment operator.
BaseFunction &	at (size_t nRow, size_t nCol)
	Reference to element (l-value)
const BaseFunction &	at (size_t nRow, size_t nCol) const
	Value of element (not l-value)
bool	operator== (const basic_fmatrix &fm) const
	Matrices of functions comparison.
bool	operator!= (const basic_fmatrix &fm) const
	Matrices of functions comparison.
basic_fmatrix &	operator<< (const basic_fmatrix &fm)
	Replacement operator.
basic_fmatrix	drv (size_t nVarNum) const
	Partial derivative.
basic_fmatrix &	simp ()
	Simplifier.
basic_fmatrix	operator+ (const basic_fmatrix &fm) const throw (cvmexception)
	Addition operator.
basic_fmatrix	operator- (const basic_fmatrix &fm) const throw (cvmexception)
	Subtraction operator.
basic_fmatrix &	operator+= (const basic_fmatrix &fm) throw (cvmexception)
	Increment operator.
basic_fmatrix &	operator-= (const basic_fmatrix &fm) throw (cvmexception)
	Decrement operator.
basic_fmatrix	operator* (const BaseFunction &f) const
	Multiplication operator.
basic_fmatrix	operator* (const treal &d) const
	Multiplication operator.
basic_fvector< treal >	operator* (const basic_fvector< treal > &fv) const throw (cvmexception)
	Matrix by vector product
basic_fmatrix	operator* (const basic_fmatrix &fm) const throw (cvmexception)
	Matrix by matrix product
basic_fmatrix	operator/ (const BaseFunction &f) const
	Division operator.
basic_fmatrix	operator/ (const treal &d) const
	Division operator.
basic_fmatrix &	operator*= (const BaseFunction &f)
	Multiply and assign operator.
basic_fmatrix &	operator*= (const treal &d)
	Multiply and assign operator.
basic_fmatrix &	operator/= (const BaseFunction &f)
	Divide and assign operator.
basic_fmatrix &	operator/= (const treal &d)
	Divide and assign operator.
basic_fvector< treal >	get_row (size_t nRow) const throw (cvmexception)
	Row as not l-value.
basic_fvector< treal >	get_col (size_t nCol) const throw (cvmexception)
	Column as not l-value.
basic_fmatrix &	set_row (size_t nRow, const basic_fvector< treal > &fv) throw (cvmexception)
	Row assignment.
basic_fmatrix &	set_col (size_t nCol, const basic_fvector< treal > &fv) throw (cvmexception)
	Column assignment.
basic_fmatrix &	mult (const basic_fmatrix &fmA, const basic_fmatrix &fmB) throw (cvmexception)
	Matrix by matrix product
Public Member Functions inherited from FArray< treal >
	FArray ()
	Default constructor.
	FArray (size_t nSize)
	Constructor.
	FArray (const FArray &a)
	Copy constructor.
	FArray (FArray &&a)
	Move constructor.
	FArray (const string_array &saInput)
	Constructor.
	FArray (const string_array &saVars, const string_array &saBodies, const string_array &saParameters, const string_array &saMeanings)
	Constructor.
virtual	~FArray ()
	Destructor.
std::vector< BaseFunction > &	impl ()
	Internal storage.
const std::vector< BaseFunction > &	impl () const
	Internal storage.
size_t	size () const
	Internal storage.
const BaseFunction &	operator[] (size_t n) const
	Constant reference to element (not l-value, zero-based)
BaseFunction &	operator[] (size_t n)
	Reference to element (l-value, zero-based)
void	value (treal *pv) const
	Numerical value.
void	value (treald, treal *pv) const
	Numerical value.
void	value (treald1, treald2, treal *pv) const
	Numerical value.
void	value (treald1, treald2, treald3, treal *pv) const
	Numerical value.
void	value (const treal *pd, treal *pv) const
	Numerical value.

Protected Types
typedef basic_fmatrix< treal >	BaseFMatrix
	Base class.
Protected Types inherited from basic_fmatrix< treal >
typedef FArray< treal >	BaseFArray
	Base class.
typedef BaseFArray::BaseFunction	BaseFunction
	Matrix element, i.e. rfunction or cfunction
Protected Types inherited from FArray< treal >
typedef basic_function< treal >	BaseFunction
	Vector element, i.e. rfunction or cfunction.

Additional Inherited Members
Protected Attributes inherited from basic_fmatrix< treal >
size_t	mM
	Number of rows
size_t	mN
	Number of columns

Detailed Description

Matrix of real functions

Fortran style storage is used here, i.e. elements are stored by columns (the same way as in basic_rmatrix etc.).

See Also

basic_fmatrix

cfmatrix

Definition at line 11558 of file cfun.h.

Member Typedef Documentation

typedef basic_fmatrix<treal> rfmatrix::BaseFMatrix

protected

Base class.

Definition at line 11561 of file cfun.h.

Constructor & Destructor Documentation

rfmatrix::rfmatrix ( )

inline

Default constructor.

Creates empty matrix of functions. No memory gets allocated.

Definition at line 11569 of file cfun.h.

rfmatrix::rfmatrix ( size_t  m, size_t  n  )

inline

Constructor.

Creates m-by-n matrix of zero functions.

Example:

using namespace cvm;
rfmatrix rfm(2,3);
std::cout << rfm;
cfmatrix cfm(2,3);
std::cout << cfm;

prints

0 0 0
0 0 0
(0,0) (0,0) (0,0)
(0,0) (0,0) (0,0)

Parameters

[in]	m	Number of rows.
[in]	n	Number of columns.

Definition at line 11596 of file cfun.h.

rfmatrix::rfmatrix ( size_t  m, size_t  n, const string_array &  saInput  )

inline

Constructor.

Creates m-by-n matrix of functions. Each function element is ininialized using appropriate string as parameterless input in Wolfram's Mathemaca syntax {var1[,var2,...]} expr. For expression syntax look at basic_function description. Matrix elements are initialized column by column. Constructor throws cvmexception in case of inappropriate sizes passed.

Example:

using namespace cvm;
string_array funcs;
funcs.push_back("{x} x");
funcs.push_back("{x} x^2");
funcs.push_back("{x} x^3");
funcs.push_back("{x} x^4");
rfmatrix rfm(2,2,funcs);
cfmatrix cfm(2,2,funcs);
std::cout << rfm << std::endl;
std::cout << cfm << std::endl;

prints

{x} x {x} x^3
{x} x^2 {x} x^4

{x} x {x} x^(3,0)
{x} x^(2,0) {x} x^(4,0)

Parameters

[in]	m	Number of rows.
[in]	n	Number of columns.
[in]	saInput	Array of strings with functions' expressions.

Definition at line 11635 of file cfun.h.

rfmatrix::rfmatrix ( size_t  m, size_t  n, const string_array &  saVars, const string_array &  saBodies, const string_array &  saParameters, const string_array &  saMeanings  )

inline

Constructor.

Creates m-by-n matrix of parameterized functions. Each function element is ininialized using appropriate string as parameterless input in Wolfram's Mathematica syntax {var1[,var2,...]} expr. For expression syntax look at basic_function description. Matrix elements are initialized column by column. Constructor throws cvmexception in case of inappropriate sizes passed.

Example:

using namespace cvm;
try{
    string_array vars, bodies, params, meanings;
    vars.push_back("x");
    vars.push_back("y");
    params.push_back("p");
    meanings.push_back("sqrt(x) + sqrt(y)");
    bodies.push_back("p*x");
    bodies.push_back("p+1");
    bodies.push_back("p*y");
    bodies.push_back("p-1");

    rfmatrix rm(2, 2, vars, bodies, params, meanings);
    std::cout << rm;
    cfmatrix cm(2, 2, vars, bodies, params, meanings);
    std::cout << cm;
}
catch (std::exception& e) {
    std::cout << "Exception " << e.what () << std::endl;
}

prints

{x,y} (sqrt(x)+sqrt(y))*x {x,y} (sqrt(x)+sqrt(y))*y
{x,y} sqrt(x)+sqrt(y)+1 {x,y} sqrt(x)+sqrt(y)-1
{x,y} (sqrt(x)+sqrt(y))*x {x,y} (sqrt(x)+sqrt(y))*y
{x,y} sqrt(x)+sqrt(y)+(1,0) {x,y} sqrt(x)+sqrt(y)-(1,0)

Parameters

[in]	m	Number of rows.
[in]	n	Number of columns.
[in]	saVars	String array with variables (may be empty).
[in]	saBodies	String array with functions' expressions. For expression syntax look at basic_function description.
[in]	saParameters	String array with parameters (may be empty).
[in]	saMeanings	String array with parameters' meanings (may be empty, must have the same size as saParameters).

Definition at line 11686 of file cfun.h.

rfmatrix::rfmatrix ( const BaseFMatrix &  fm )

inline

Copy Constructor.

Creates copy of matrix of functions referred by fm.

Parameters

[in]

fm

Matrix of functions (or rfmatrix) to copy from.

Definition at line 11698 of file cfun.h.

rfmatrix::rfmatrix ( BaseFMatrix &&  fm )

inline

Move Constructor.

Definition at line 11706 of file cfun.h.

Member Function Documentation

rmatrix rfmatrix::operator() ( ) const

inline

Numerical value.

Returns numerical value of matrix of functions of no variables.

Example:

using namespace cvm;
string_array funcs;
funcs.push_back("1*1");
funcs.push_back("2*2");
funcs.push_back("3*3");
funcs.push_back("4*4");
rfmatrix rfm(2,2,funcs);
cfmatrix cfm(2,2,funcs);

rmatrix ry = rfm();
cmatrix cy = cfm();
std::cout << rfm << ry << std::endl;
std::cout << cfm << cy << std::endl;

prints

1*1 3*3
2*2 4*4
1 9
4 16

(1,0)*(1,0) (3,0)*(3,0)
(2,0)*(2,0) (4,0)*(4,0)
(1,0) (9,0)
(4,0) (16,0)

Returns

vector of functions' values.

Definition at line 11745 of file cfun.h.

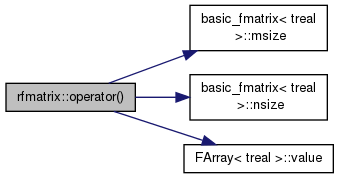

Here is the call graph for this function:

rmatrix rfmatrix::operator() ( treal  d ) const

inline

Numerical value.

Returns numerical value of matrix of functions of one variable.

Example:

using namespace cvm;
string_array funcs;
funcs.push_back("{x} x");
funcs.push_back("{x} x^2");
funcs.push_back("{x} x^3");
funcs.push_back("{x} x^4");
rfmatrix rfm(2,2,funcs);
cfmatrix cfm(2,2,funcs);

rmatrix ry = rfm(2.);
cmatrix cy = cfm(tcomplex(2.,0.));
std::cout << rfm << ry << std::endl;
std::cout << cfm << cy << std::endl;

prints

{x} x {x} x^3
{x} x^2 {x} x^4
2 8
4 16

{x} x {x} x^(3,0)
{x} x^(2,0) {x} x^(4,0)
(2,0) (8,0)
(4,0) (16,0)

Parameters

[in]

d

variable's value.

Returns

matrix of functions' values.

Definition at line 11786 of file cfun.h.

Here is the call graph for this function:

rmatrix rfmatrix::operator() ( treal  d1, treal  d2  ) const

inline

Numerical value.

Returns numerical value of matrix of functions of two variables.

Example:

using namespace cvm;
string_array funcs;
funcs.push_back("{x,y} x+y");
funcs.push_back("{x,y} x-y");
funcs.push_back("{x,y} x*y");
funcs.push_back("{x,y} x^y");
rfmatrix rfm(2,2,funcs);
cfmatrix cfm(2,2,funcs);

rmatrix ry = rfm(2., 3.);
cmatrix cy = cfm(tcomplex(2.,0.), tcomplex(3.,0.));
std::cout << rfm << ry << std::endl;
std::cout << cfm << cy << std::endl;

prints

{x,y} x+y {x,y} x*y
{x,y} x-y {x,y} x^y
5 6
-1 8

{x,y} x+y {x,y} x*y
{x,y} x-y {x,y} x^y
(5,0) (6,0)
(-1,0) (8,0)

Parameters

[in]	d1	First variable's value.
[in]	d2	Second variable's value.

Returns

matrix of functions' values.

Definition at line 11828 of file cfun.h.

Here is the call graph for this function:

rmatrix rfmatrix::operator() ( treal  d1, treal  d2, treal  d3  ) const

inline

Numerical value.

Returns numerical value of matrix of functions of three variables.

Example:

using namespace cvm;
string_array funcs;
funcs.push_back("{x,y,z} x+y+z");
funcs.push_back("{x,y,z} x-y-z");
funcs.push_back("{x,y,z} x*y*z");
funcs.push_back("{x,y,z} x^y^z");
rfmatrix rfm(2,2,funcs);
cfmatrix cfm(2,2,funcs);

rmatrix ry = rfm(3., 2., 2.);
cmatrix cy = cfm(tcomplex(3.,0.), tcomplex(2.,0.), tcomplex(2.,0.));
std::cout << rfm << ry << std::endl;
std::cout << cfm << cy << std::endl;

prints

{x,y,z} x+y+z {x,y,z} x*y*z
{x,y,z} x-y-z {x,y,z} x^(y^z)
7 12
-1 81

{x,y,z} x+y+z {x,y,z} x*y*z
{x,y,z} x-y-z {x,y,z} x^(y^z)
(7,0) (12,0)
(-1,0) (81,0)

Parameters

[in]	d1	First variable's value.
[in]	d2	Second variable's value.
[in]	d3	Third variable's value.

Returns

matrix of functions' values.

Definition at line 11871 of file cfun.h.

Here is the call graph for this function:

rmatrix rfmatrix::operator() ( const treal *  pd ) const

inline

Numerical value.

Returns numerical value of matrix of functions for given values of variables. Array's dimension is not verified.

Example:

using namespace cvm;
string_array funcs;
funcs.push_back("{x,y,z} x+y+z");
funcs.push_back("{x,y,z} x-y-z");
funcs.push_back("{x,y,z} x*y*z");
funcs.push_back("{x,y,z} x^y^z");
rfmatrix rfm(2,2,funcs);
cfmatrix cfm(2,2,funcs);
rvector rx(3);
cvector cx(3);
rx[1] = 3.; rx[2] = 2.; rx[3] = 2.;
cx[1] = tcomplex(3.,0.); cx[2] = tcomplex(2.,0.); cx[3] = tcomplex(2.,0.);

rmatrix ry = rfm(rx);
cmatrix cy = cfm(cx);
std::cout << rfm << ry << std::endl;
std::cout << cfm << cy << std::endl;

prints

{x,y,z} x+y+z {x,y,z} x*y*z
{x,y,z} x-y-z {x,y,z} x^(y^z)
7 12
-1 81

{x,y,z} x+y+z {x,y,z} x*y*z
{x,y,z} x-y-z {x,y,z} x^(y^z)
(7,0) (12,0)
(-1,0) (81,0)

Parameters

[in]

pd

array of variables' values.

Returns

vector of functions' values.

Definition at line 11917 of file cfun.h.

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• src/cfun.h
