5 2D Graphics

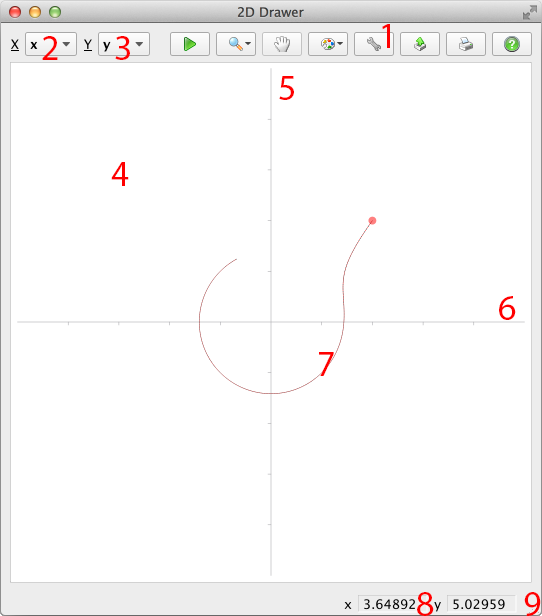

5.1 2D Drawer window

Click to bring 2D Drawer window which can also be used to start solving the system you entered interactively. You can open few windows by clicking this button multiple times.

1.
Toolbar (each button function explained below).
2.
X axis variable. This is independent variable by default.
3.
Y axis variable.
4.
Graphics plane
5.
Y axis with marks. Mark step is 1 coordinate unit (adjustable), marks can be turned off.
6.
X axis with marks. Mark step is 1 coordinate unit (adjustable), marks can be turned off.
7.
Solution. It has a holder at the beginning looking like a small circle. Click on it to select a solution (color gets changed, solution also gets selected in main window). Click somewhere else to unselect.
8.
Current mouse coordinates (this is handy to start new solutions).
9.
Resizing handle. You can resize this window as much as you want.

5.2 Interactively starting solution from given point

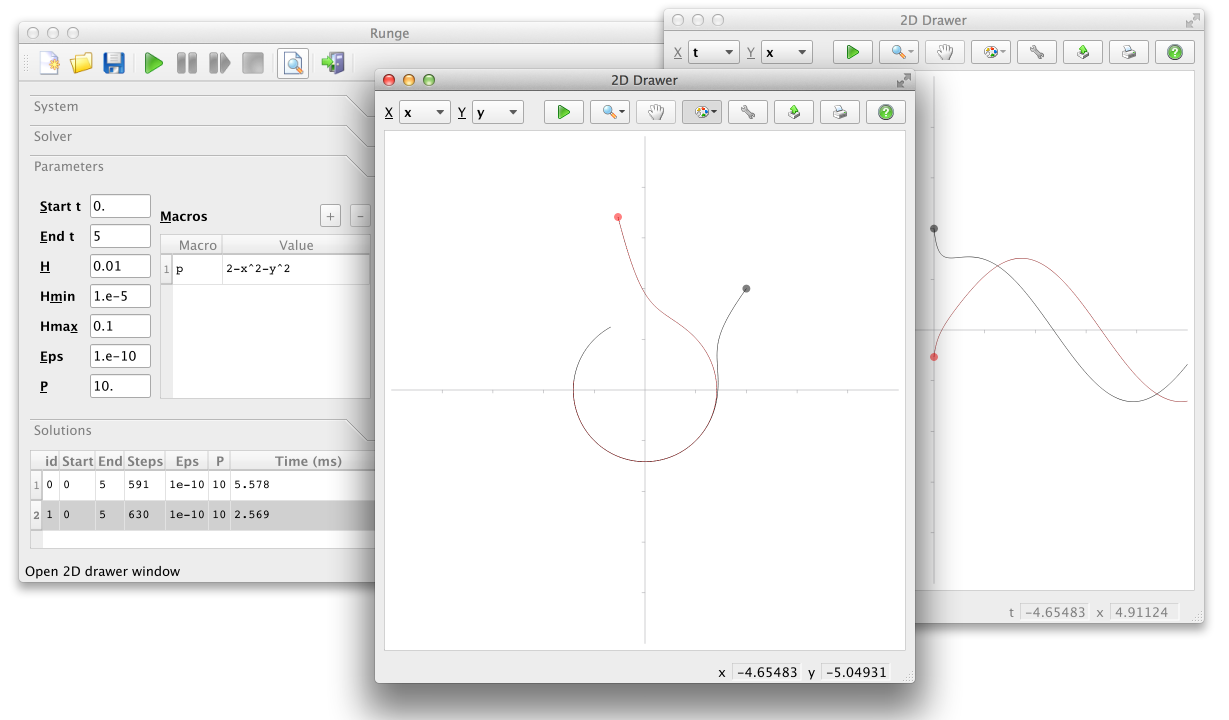

Click “Run froim point” button to enter the mode (mouse cursor will be changed accordingly). Click on a plain where you want to run new solution from. You should get something like this:

Note that new solution gets added to the main window list and it’s also drawn on every other drawer open.

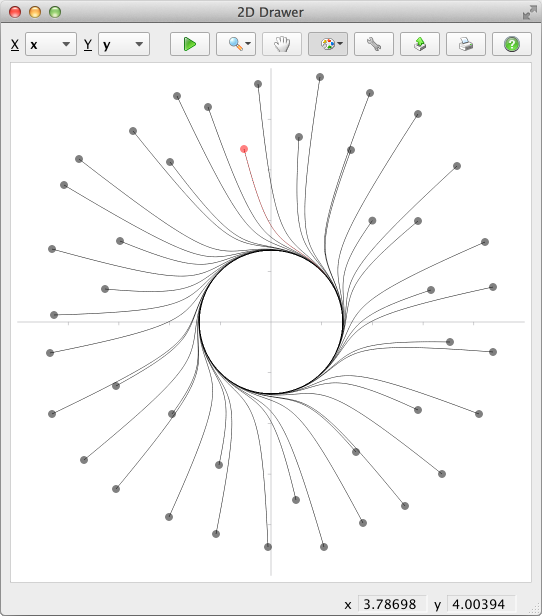

You can quickly create a set of solutions by clicking at different points:

5.3 Selecting solutions

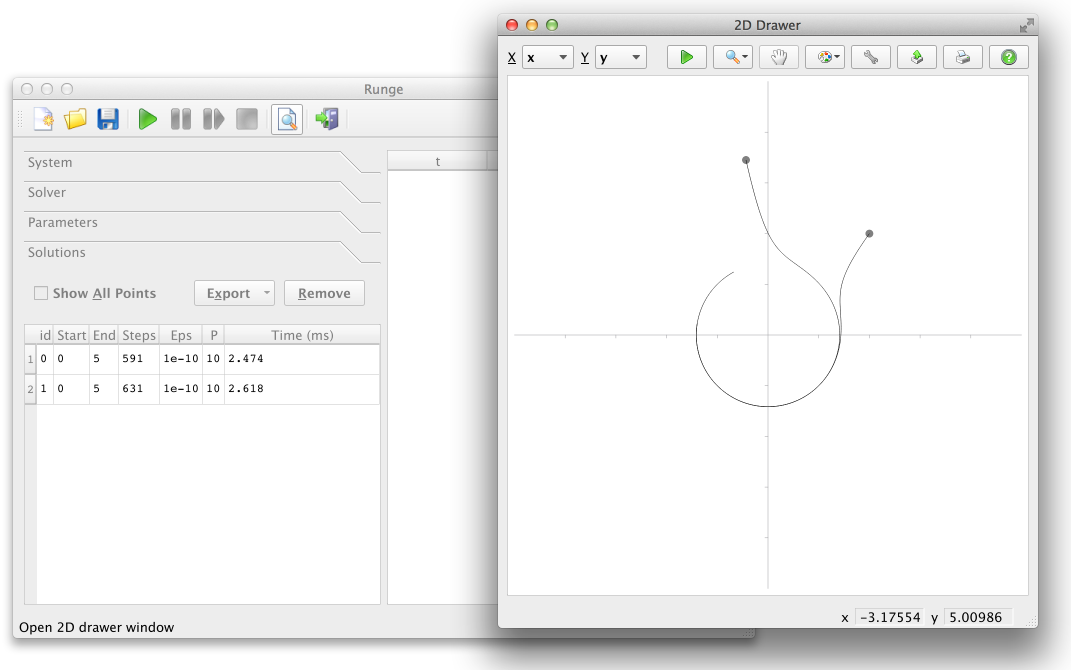

Every solution has a first point where independent variable t = t0 . It’s marked by a small circle called “handle”:

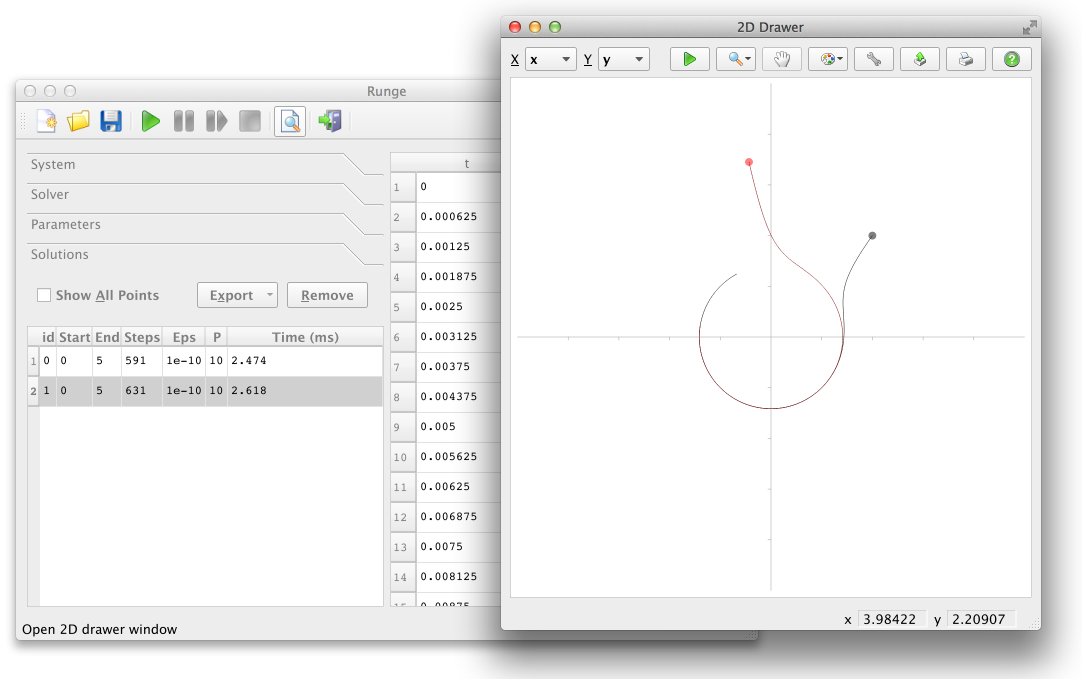

Click it to select:

Note how it gets selected in main window (it works in both ways — you can select it in the list as well). You can explore, export and remove selected solution.

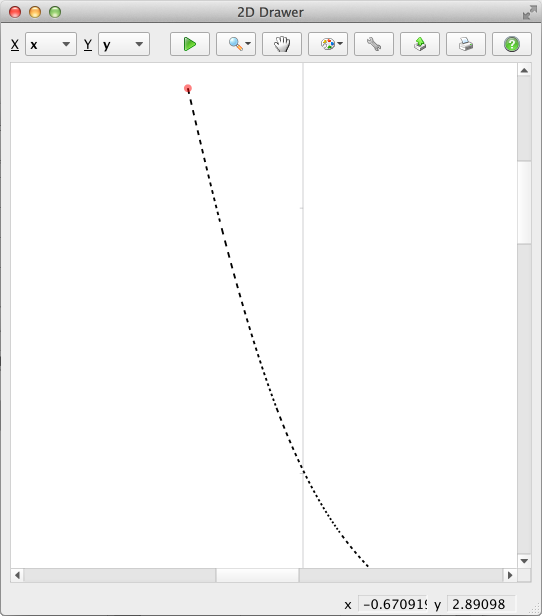

Selected solution is marked by different color for each second step. You choose the color using the color menu (since version 1.1, see below). Sometimes it’s handy to observe how steps change:

5.4 Zoom and Pan

Click Zoom button to bring zoom menu

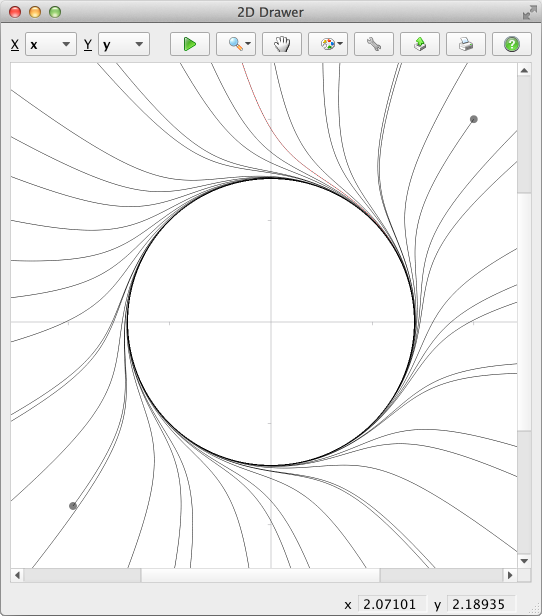

Select Zoom In or press Ctrl + combination to increase the drawing in 2:1 ratio:

Zoom in level is virtually endless. Use “Zoom Out” to unzoom (Ctrl –). Use “Zoom to rectangle” (Ctrl Z) to select a rectangle by mouse. This rectangle would be scaled to. Use “Fit all” (Ctrl F) to show everything.

Click Pan button to enter Panning mode (mouse cursor changes). You can drag your drawing for exploring its different parts. Panning is available only when there is something out of window borders.

5.5 Color

Click Palette button to bring the color menu:

By selecting first item you can:

Please note that said above is also valid for all odd steps.

By selecting second item you can:

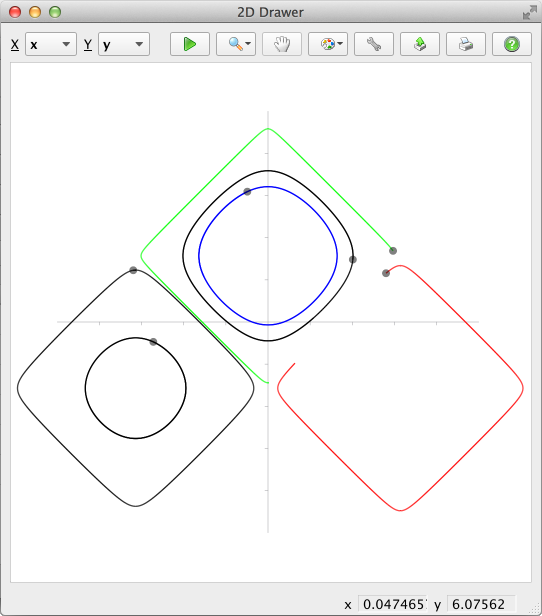

For example:

5.6 Settings

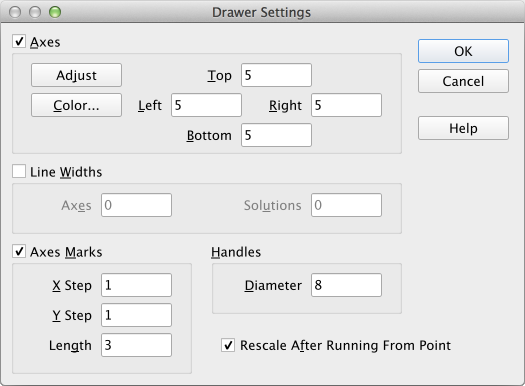

Click Drawer Settings button to bring settings window:

Here you can:

1.
Turn on/off axes. If axes are turned on you can:
2.
Turn on/off line widths for axes and solutions. When turned off, the lines are drawn without widths at any scale level (“hair” lines). Sometimes for better quality of exported images you’d need to set those widths manually.
3.
Turn on/off axes marks. If axes marks are turned on you can:
4.
Change diameter of solution handles in pixels.
5.
Make the drawer to rescale each time new solution added. This mode (default) helps to keep seeing everything.

5.7 Export to File

Click Export to File button to open Export window:

Here you can:

1.
Choose image type:

This list is platform-dependent.

2.
Set image width and height in pixels.
3.
Set JPEG quality if it’s selected.
4.
Make the drawer to open newly created image using OS default viewer:

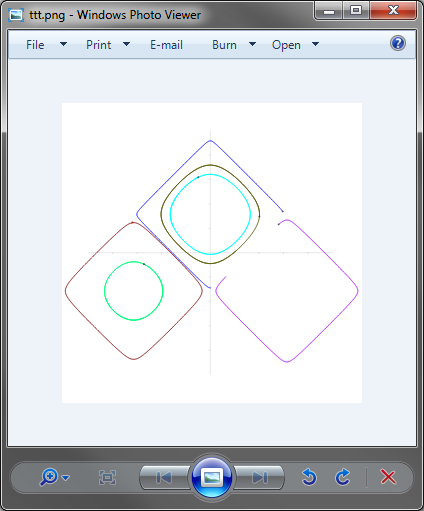

Here is 300x300 result sample is shown:

5.8 Print to Document/Paper

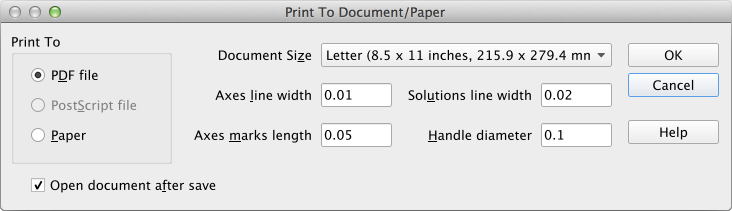

Click Print button to open Print to Document/Paper window:

1.
Choose where to print: to PDF, PS or paper.
2.

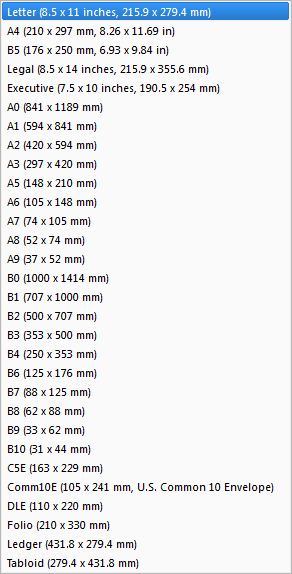

Choose document/paper size:

This list is platform-dependent.

3.
Set different lines widths and handle diameter im millimeters.
4.

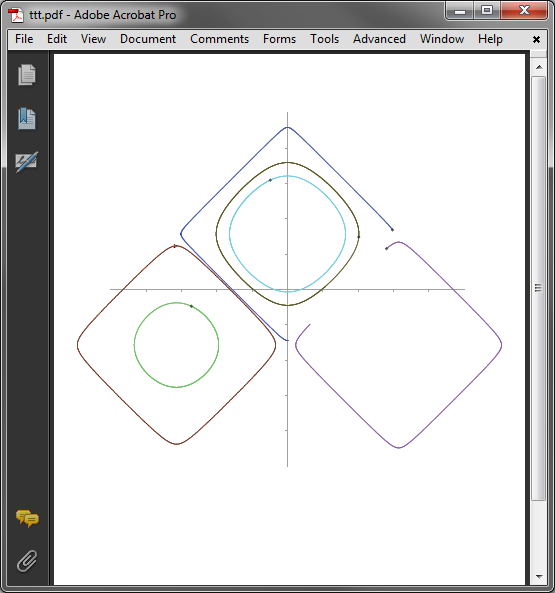

Make the drawer to open newly created document using OS default viewer:

5.9 Help

Click Help button to open Runge Manual.
